How To Debugg Custom Rules for Common Events

Common Events are the main mechanism for executing custom logic in DCM. There are multiple ways to debug these custom rules.

Here we show the use of two Monitoring tools: System Monitoring and Queue Monitoring

Analyzing input parameters for SQL functions

Custom rules usually have an INPUT parameter that is an XML string with context. For example, the Common Event for "Create Case" passes in an XML of any MDM data as well as other basic info about the Case.

There is a function called f_DAF_logEventFn that allows you to send to the log table (TBL_UTIL_LOG ). You can add it to your custom rules code, this function will record this context information into the system log. This entry in the log is viewable either on the History tab on the Case or Task detail page or under the DCM Setup → Monitoring → System Monitor menu as is shown below.

Analyzing input parameters for a C# rule

Any rule that is not a SQL Function will be executed through the AppBase Queue. You can see the results for the execution of the rule under the Queue Monitor log on the DCM Setup → Monitoring → Queue Monitor menu.

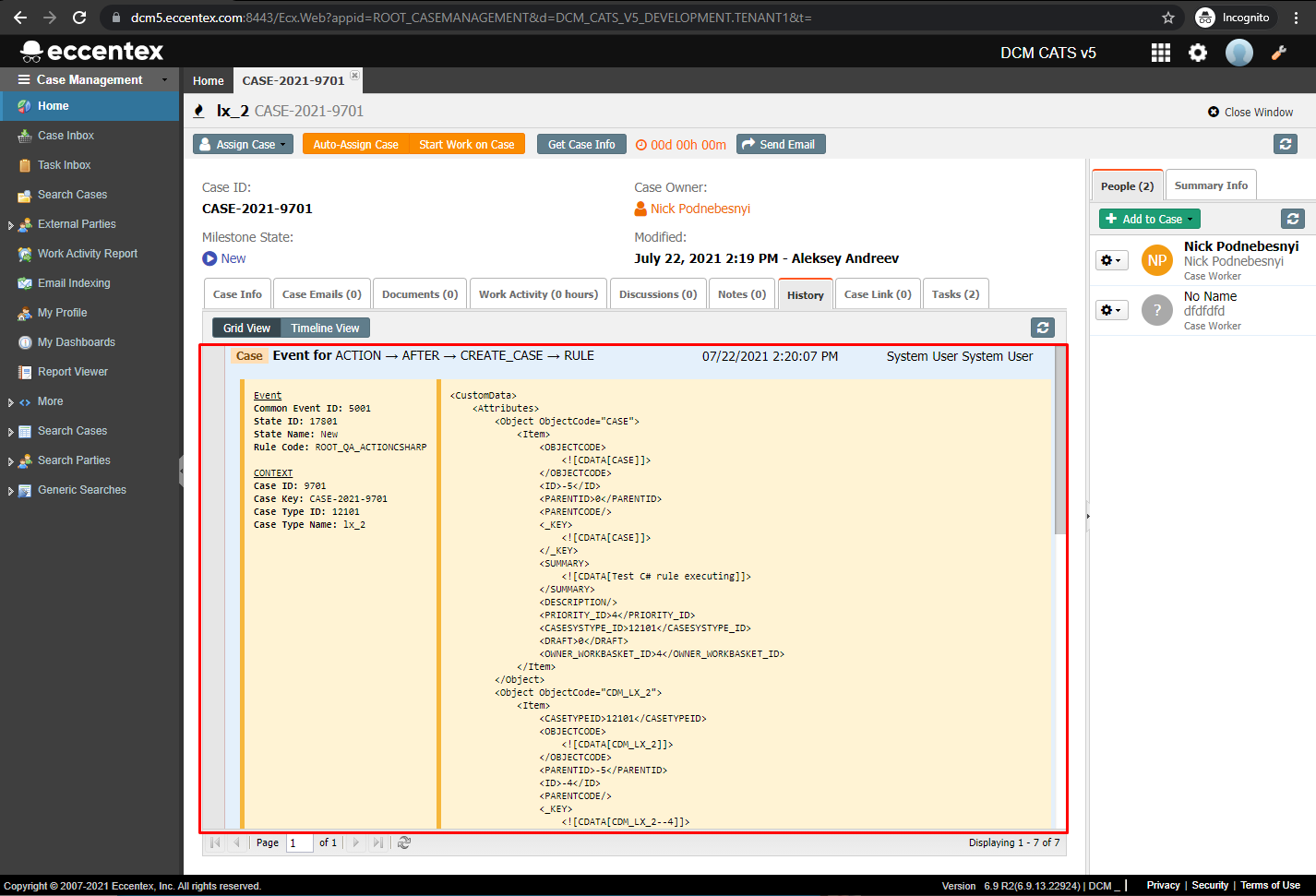

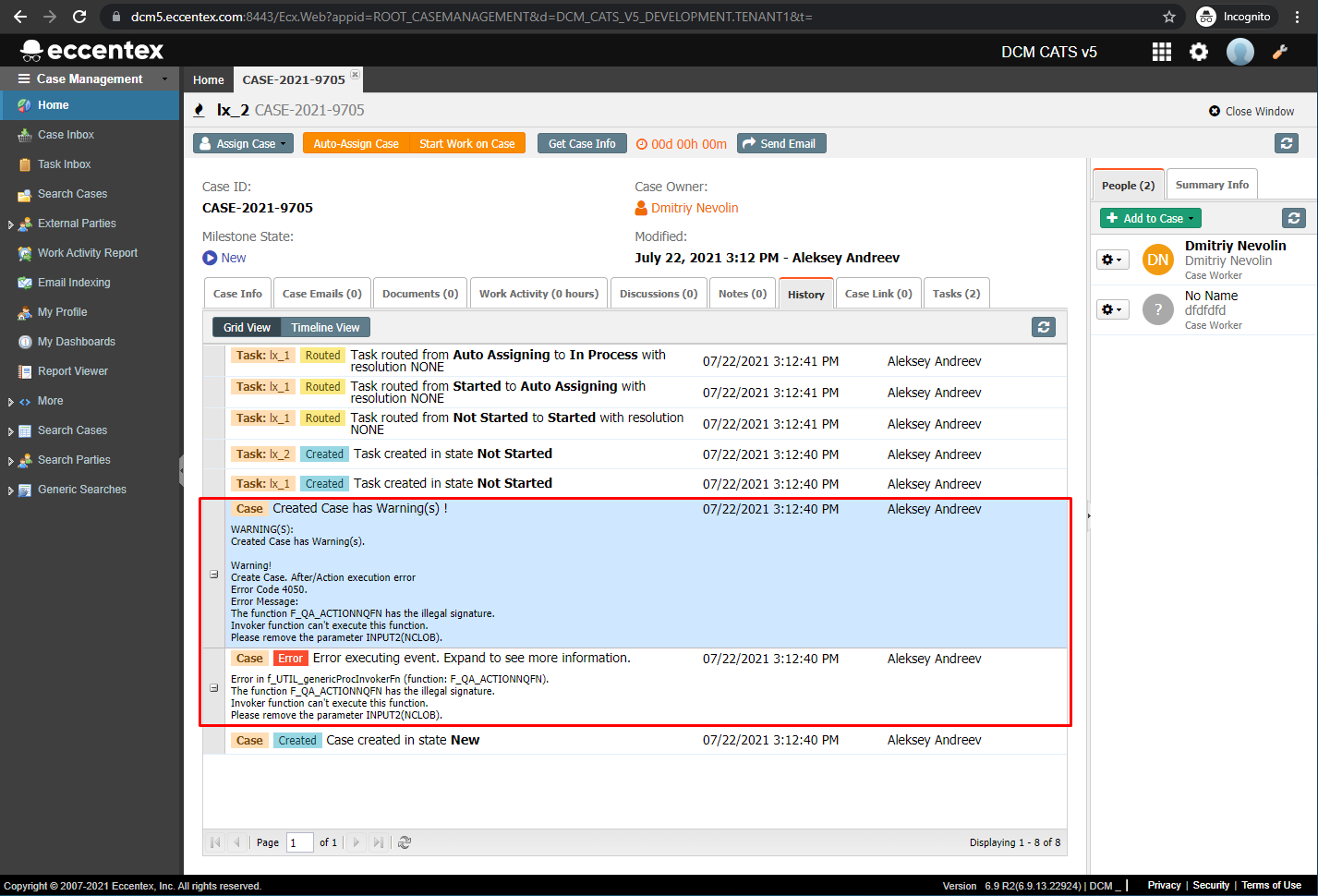

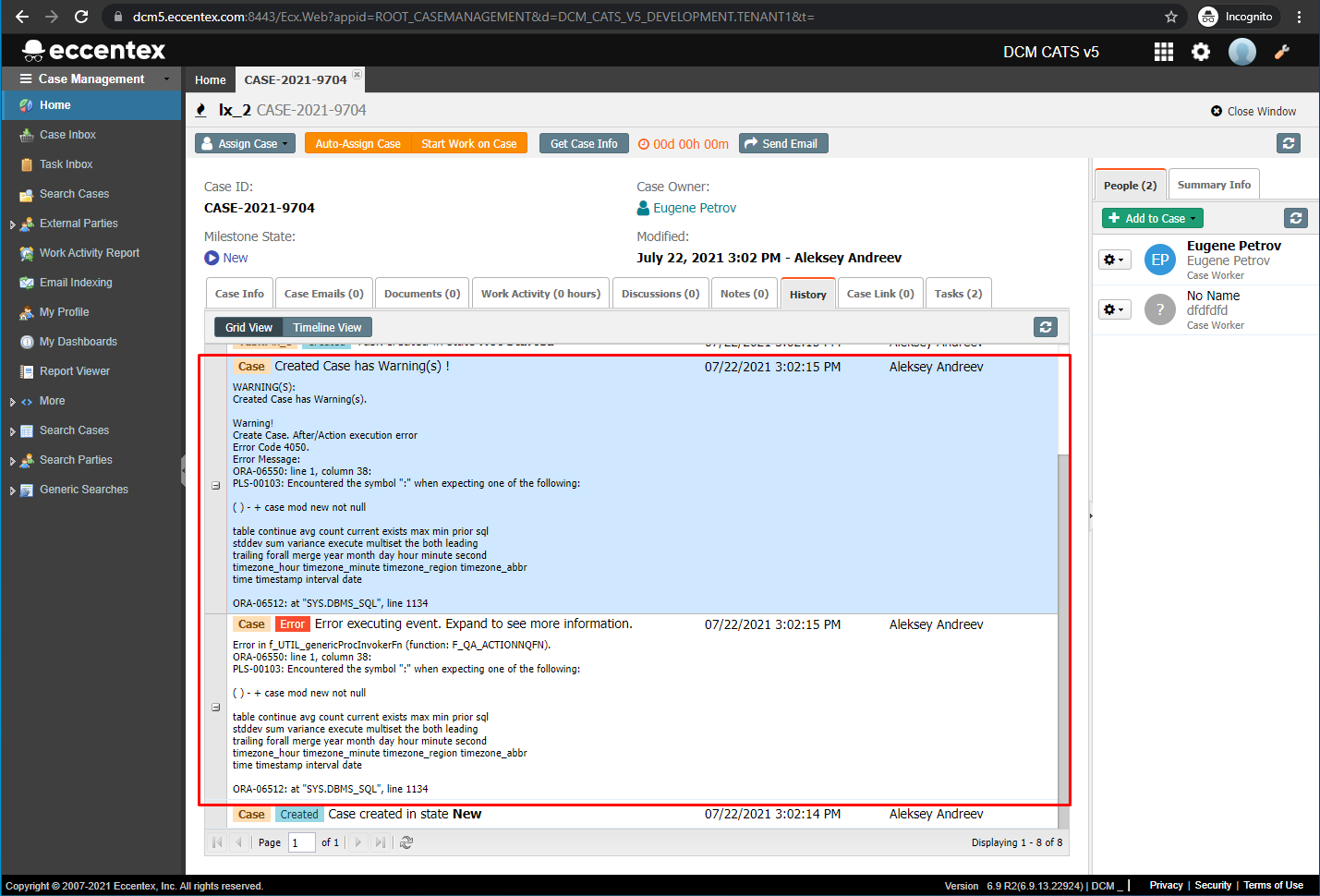

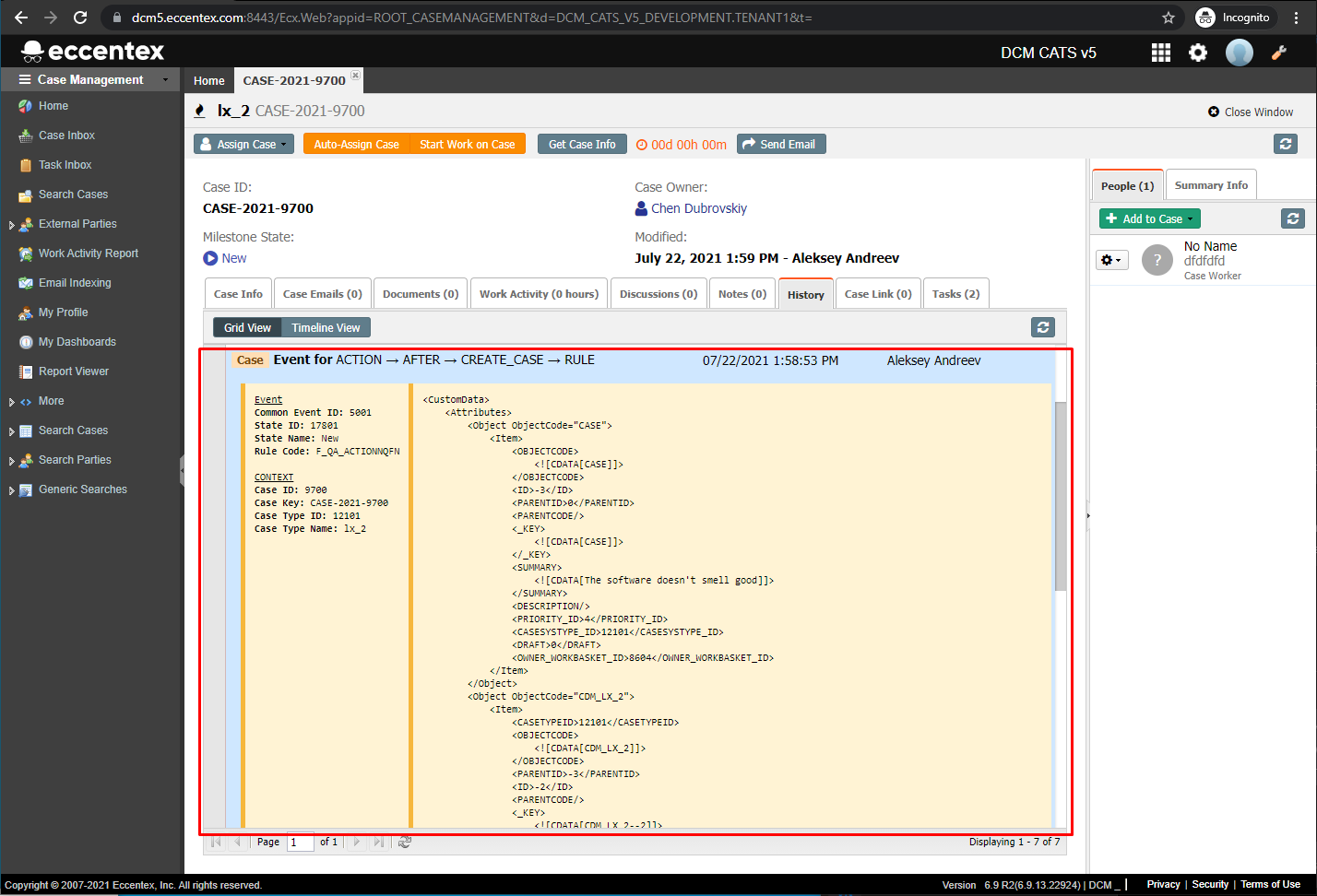

Logs view on History tab.

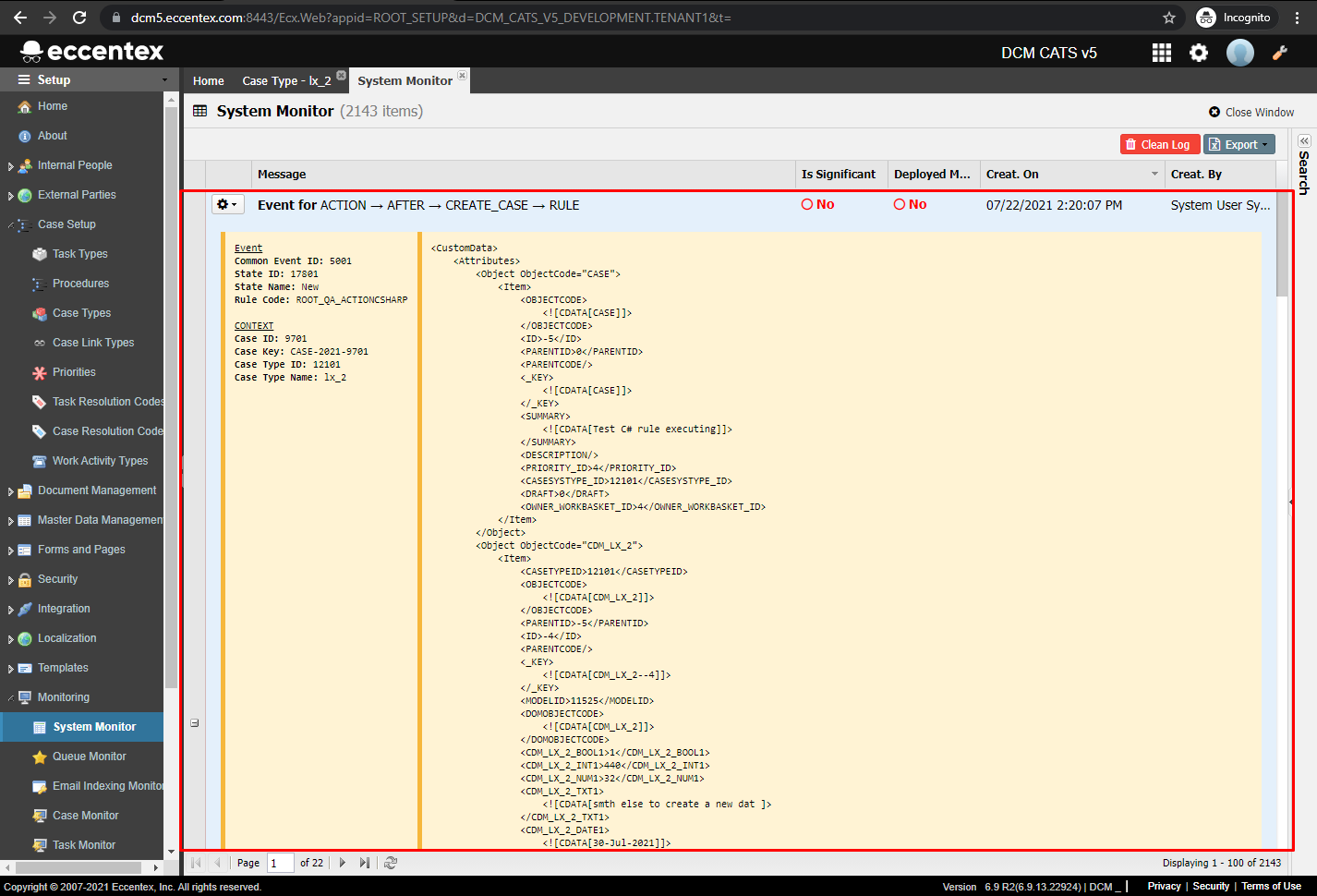

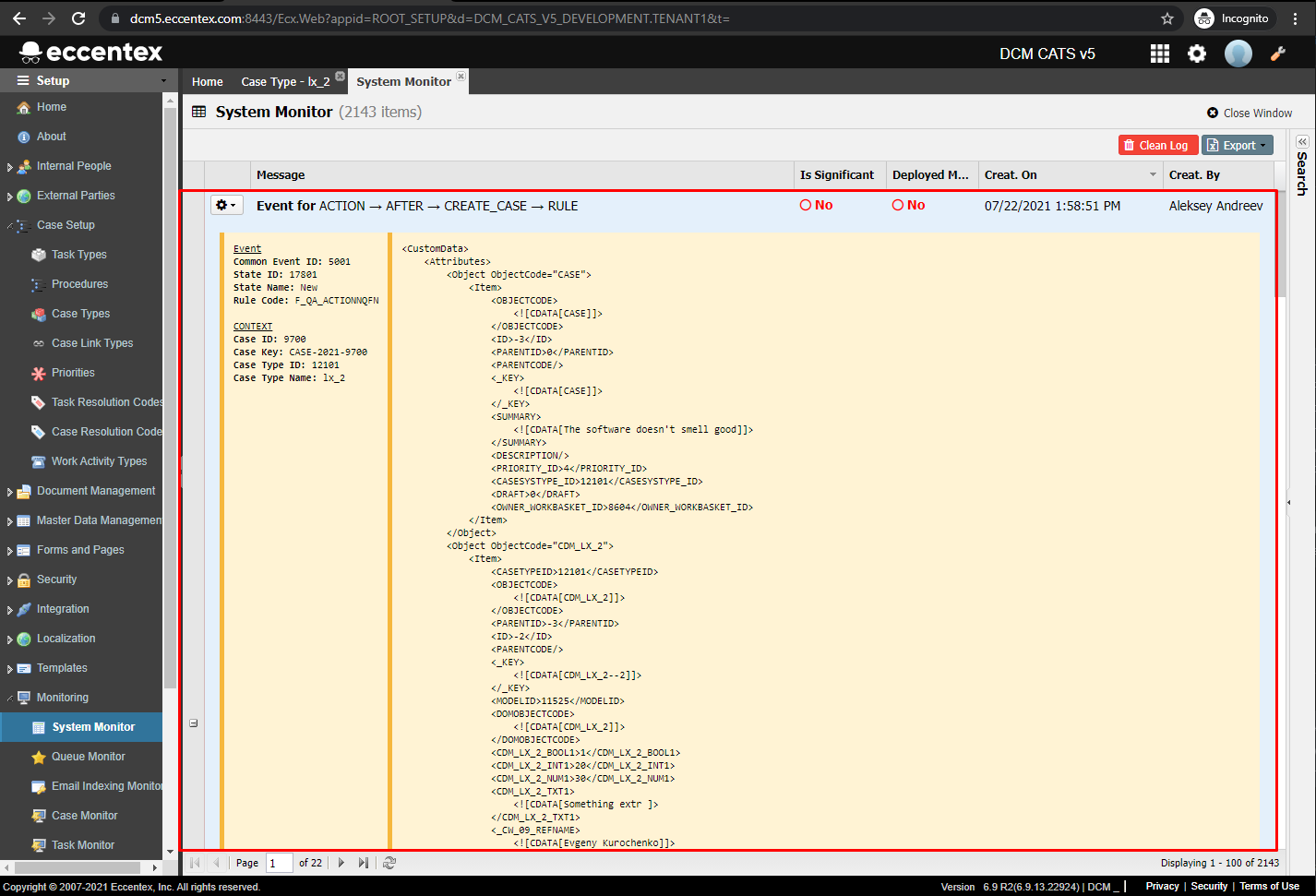

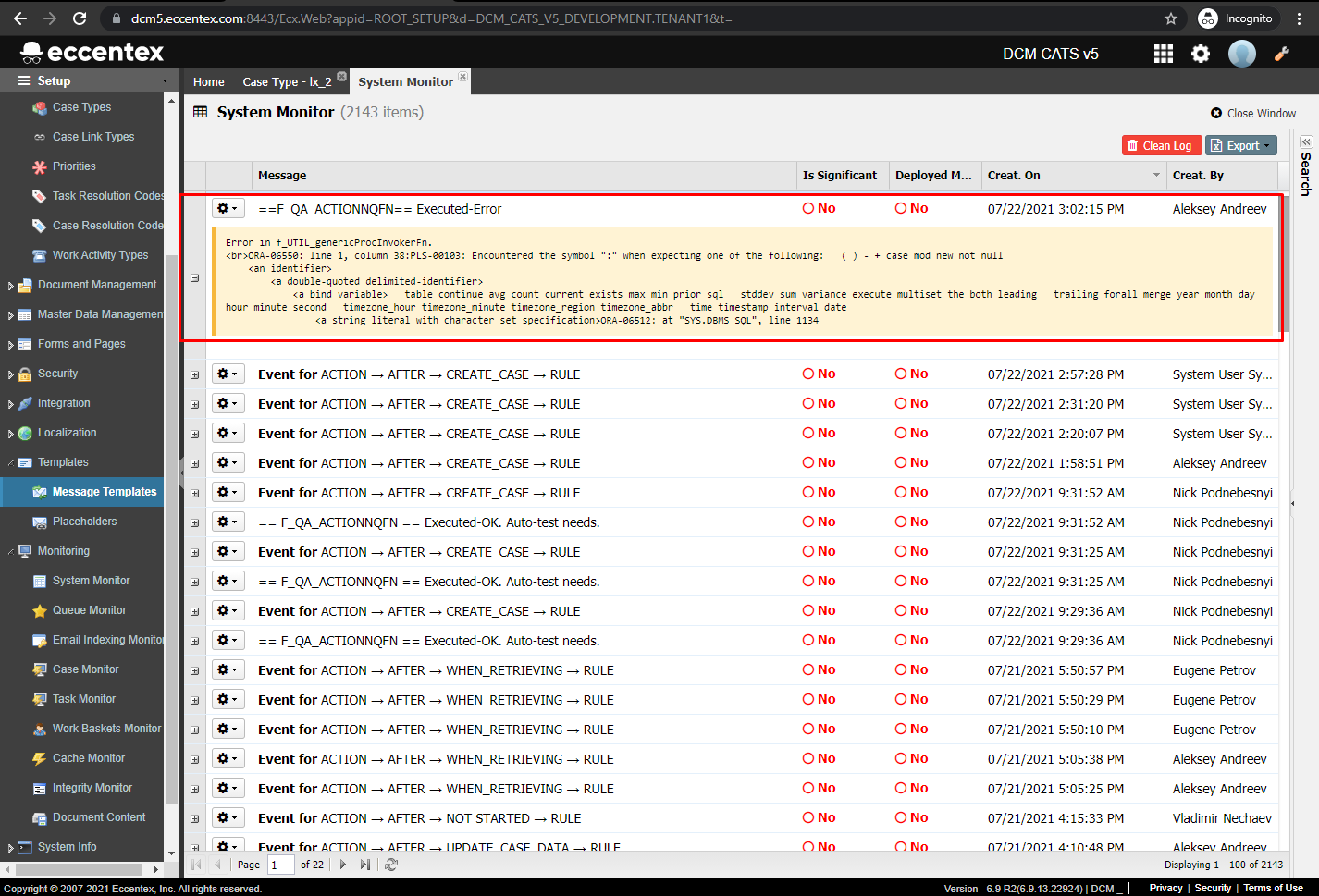

Logs view on System Monitor menu.

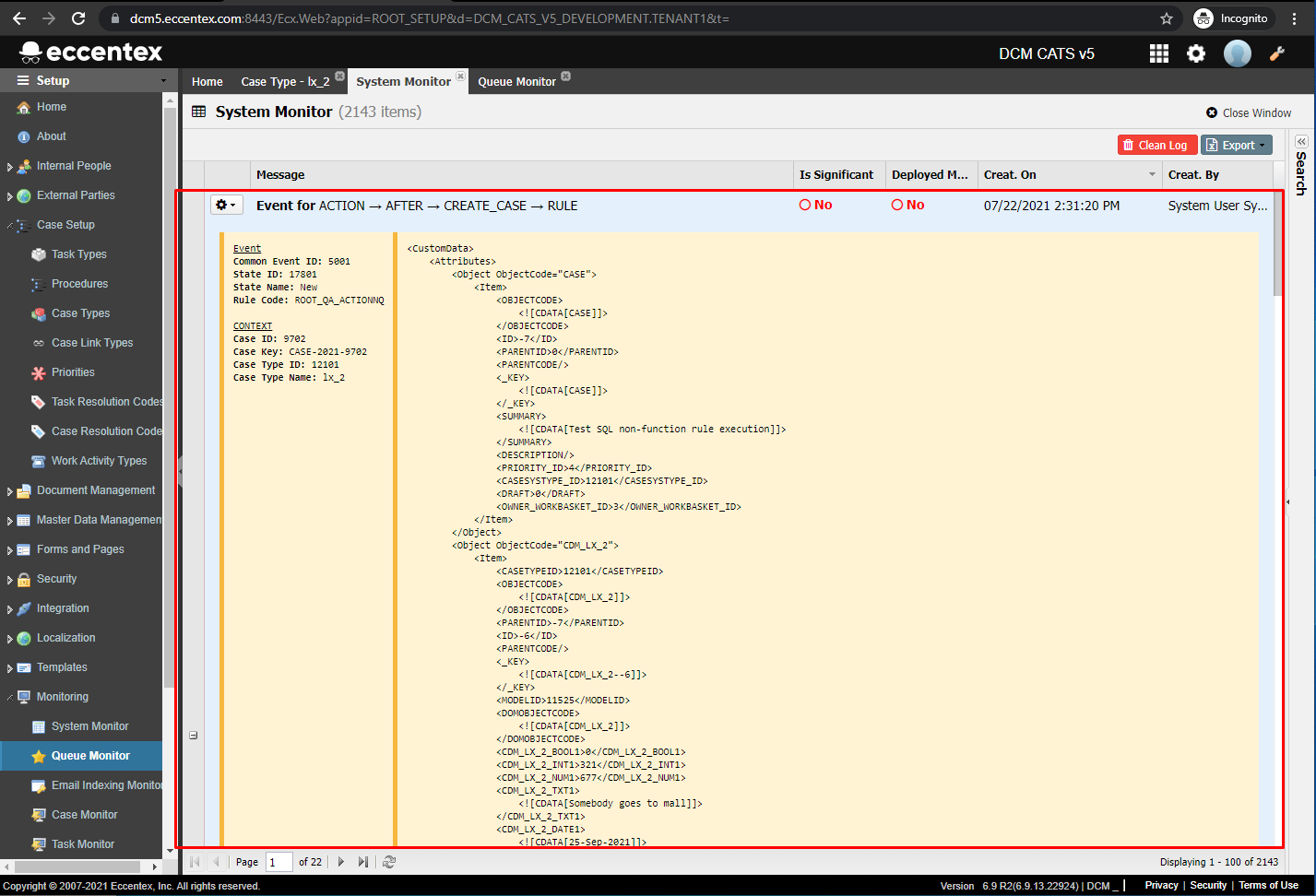

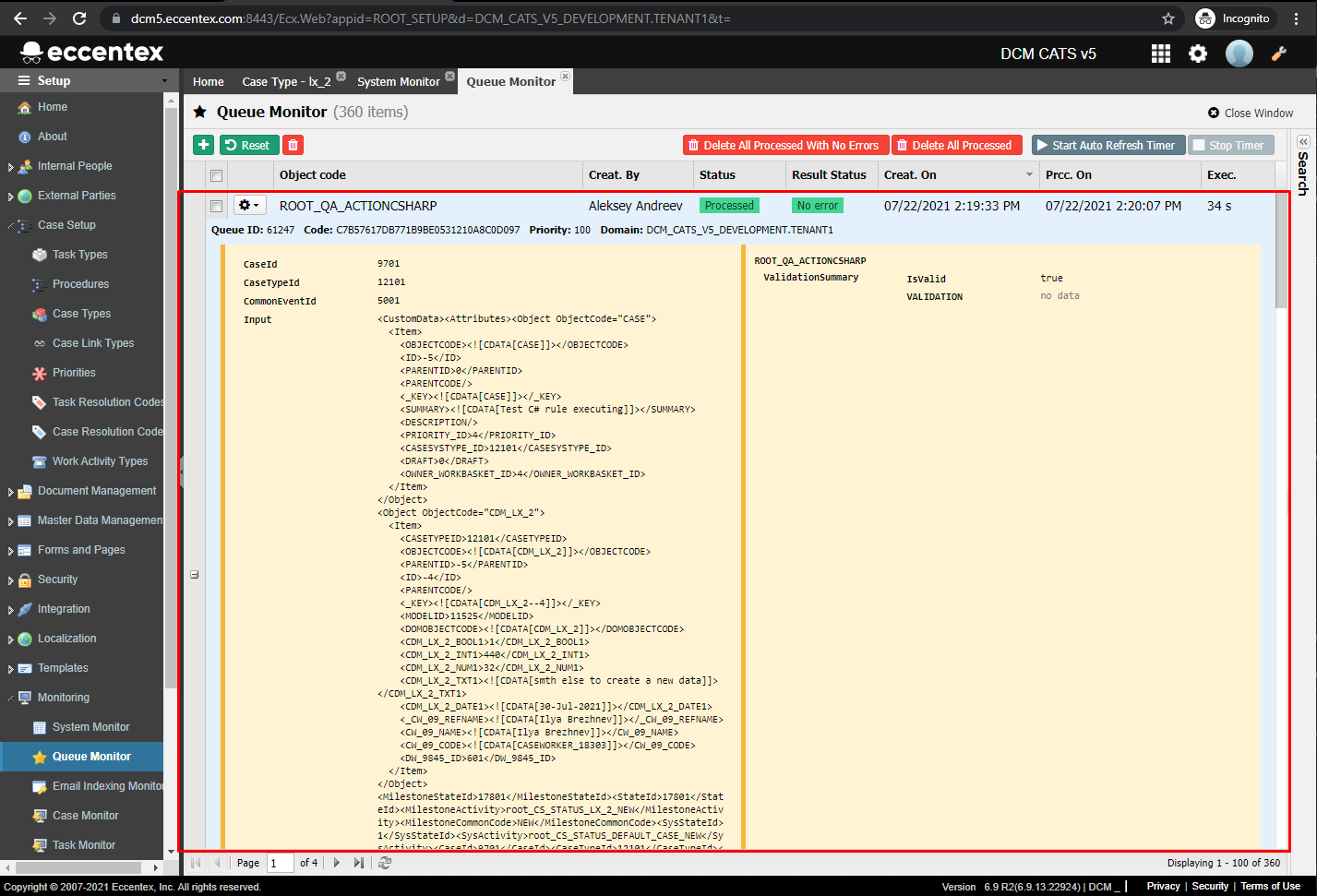

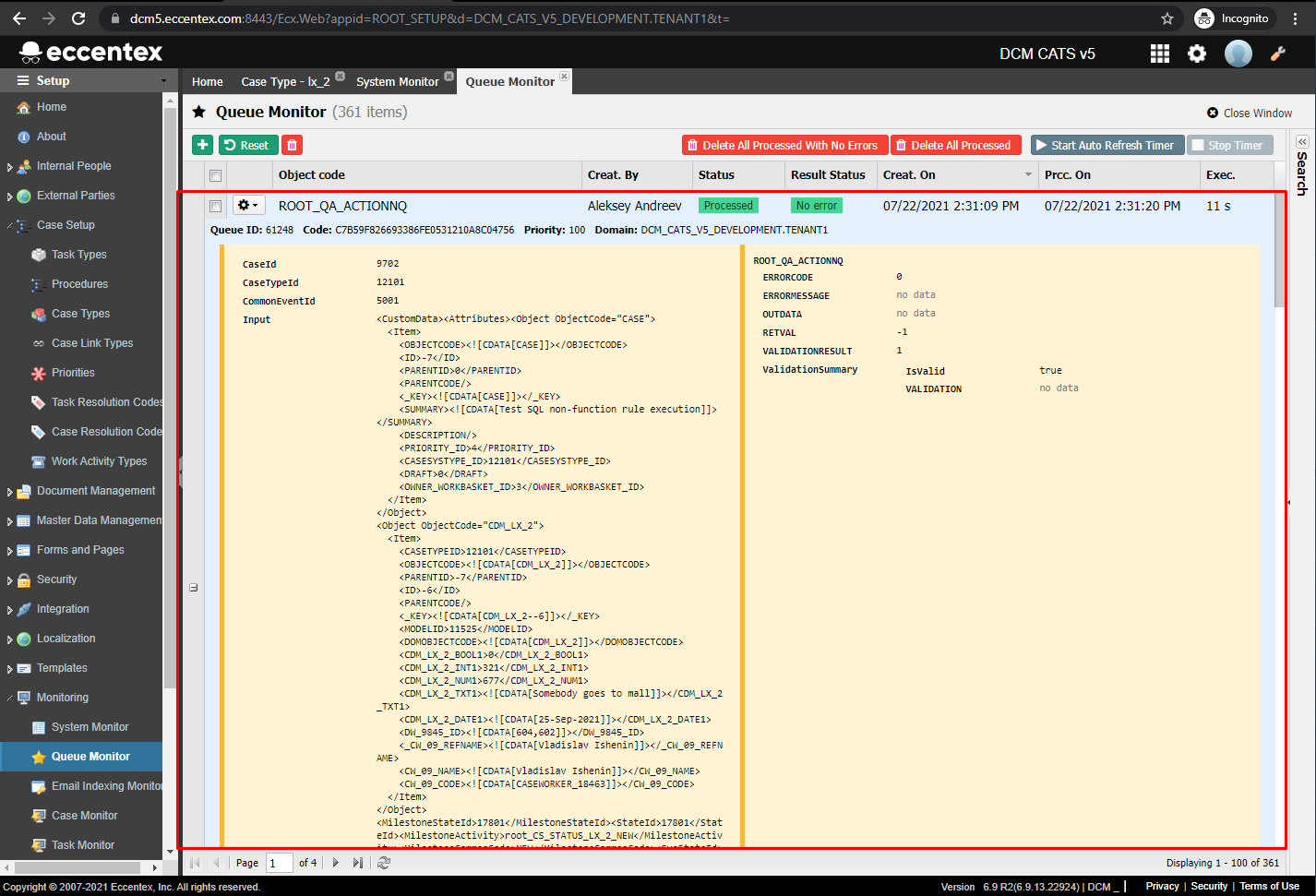

Logs view on Queue Monitor menu.

Analyzing input parameters for other SQL non-function rule

Any rule that is not a SQL Function will be executed through the AppBase Queue. You can see the results for the execution of the rule under the Queue Monitor log on the DCM Setup → Monitoring → Queue Monitor menu.
