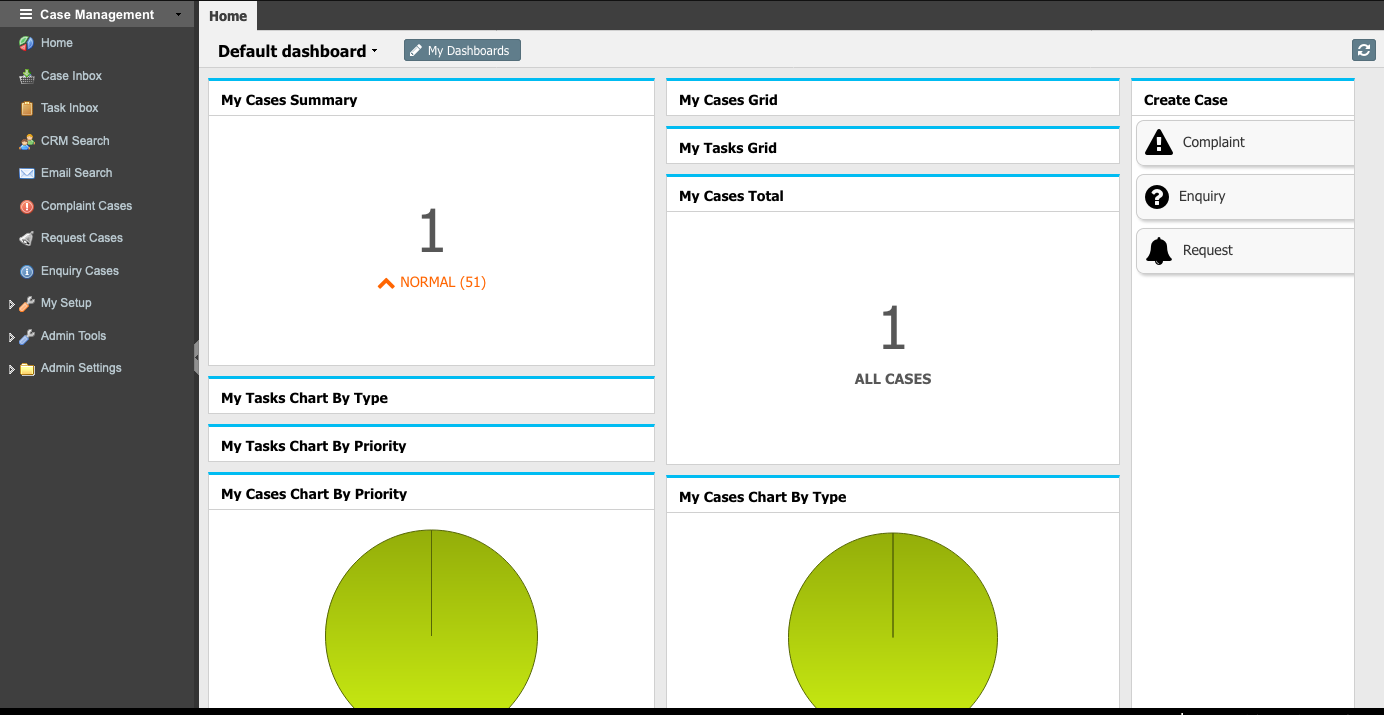

A dashboard is a user interface that organizes and presents information in a way that is easy to read. Within the DCM, this concept is a configurable option and at its heart a business intelligence dashboard that provides data visualization widgets that display the current status of metrics and key performance indicators (KPIs). Standard dashboard widgets include:
Caseworkers current cases
Caseworker current tasks
All Cases
All Tasks
To allow caseworkers to select more than one dashboard layout, it is possible to create different dashboards with different information and layouts. By selecting from a library of standard widgets, charts, and controls, a caseworker can switch between different views of the data contained in the solution.
Adding a Personalized Dashboard
On the left, navigate to → Case Management → Home
Click on the My Dashboard button to manage dashboards
Click the New Dashboard button

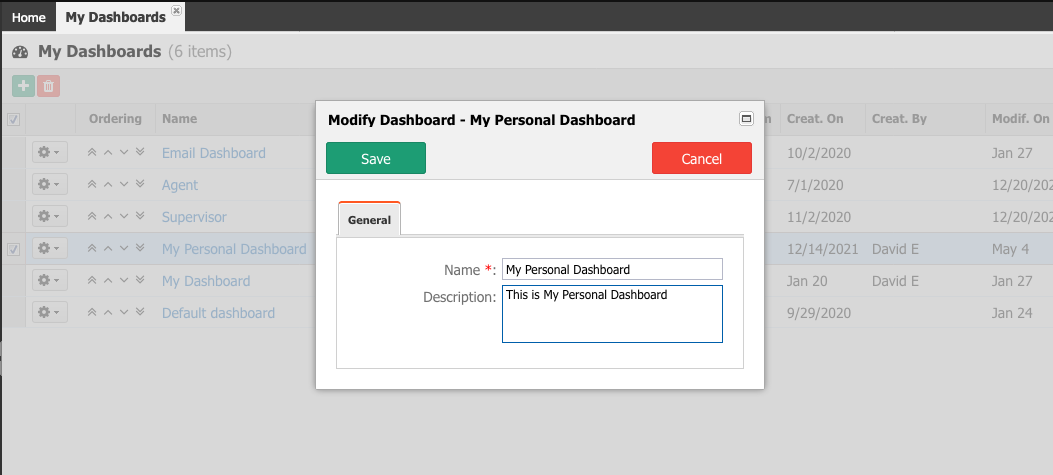

Assign a Name and a Description
Save the new dashboard definition
Click on the name hyperlink to open the new dashboard
You cannot open/edit System dashboards here.
Your new dashboard will be empty. Here, you can add or remove columns and add or remove widgets using the buttons or hyperlinks.
Click the green Add Widget button.

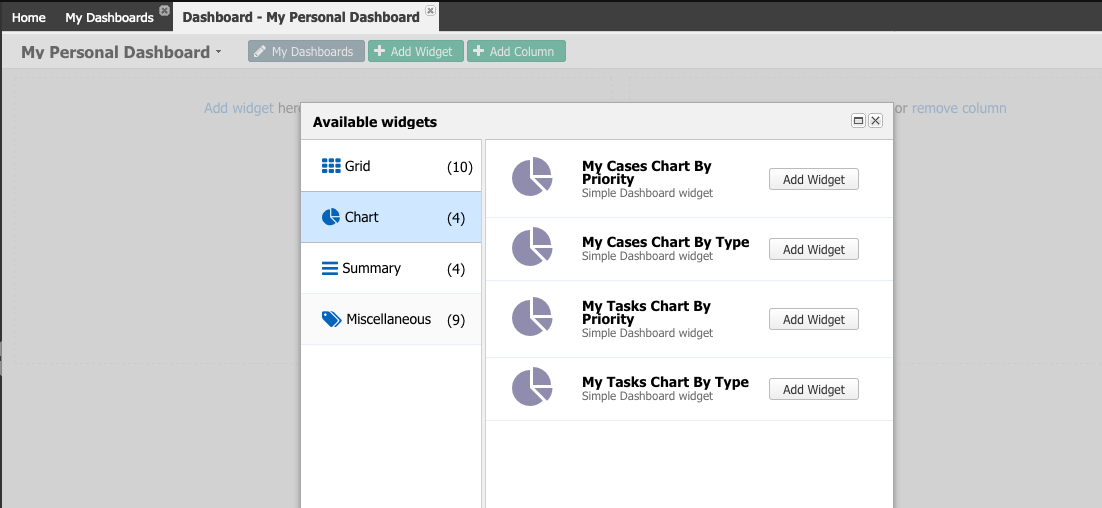

From the pop-up window, select a widget by clicking the Add Widget button to the left of the widget. Widgets are grouped by type: Grid, Chart, Summary, or Miscellaneous. Select a type to see the widgets under that category.
When you are done, close the tab (there is no Save button here).
Clone a Dashboard
If you need to modify a System dashboard, you have to clone it to create a new one and modify the cloned one.
On the left, navigate to → Case Management → Home
Click on the My Dashboard button to manage dashboards.

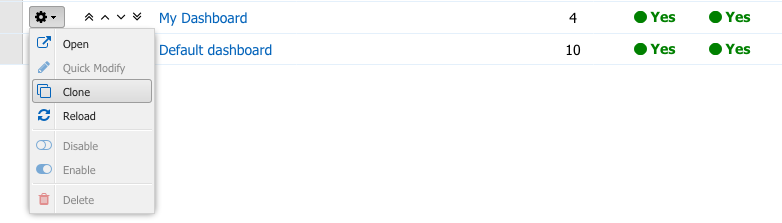

Click the Gear button next to the dashboard name and select the Clone option.

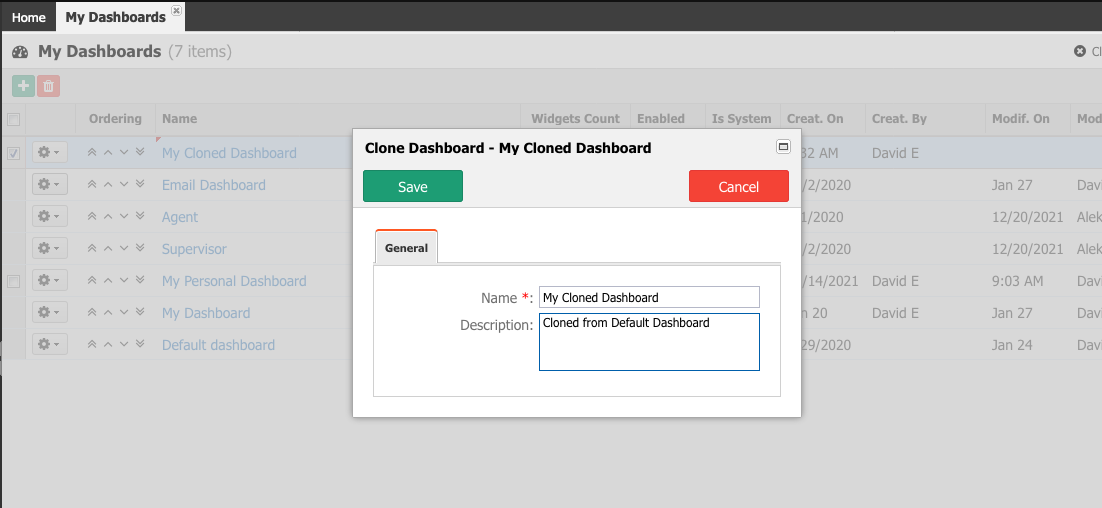

Insert a Name and Description for the cloned dashboard
Here, you can add or remove columns and add or remove widgets using the buttons or hyperlinks, rearrange the order and/or position of the widgets.
When you are done, close the tab (there is no Save button here).
